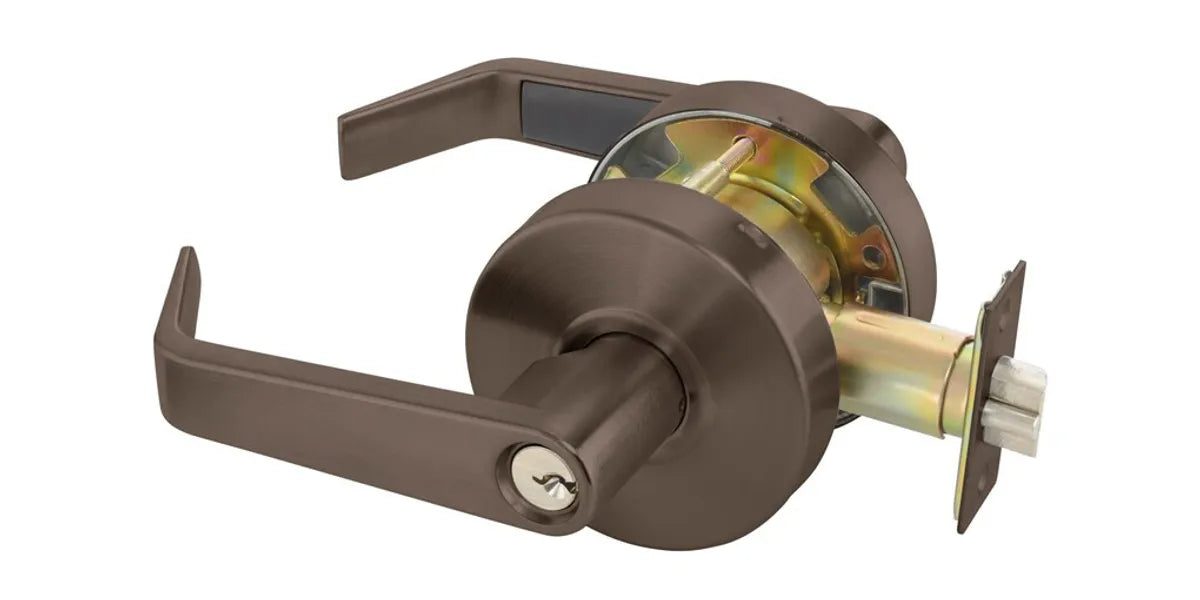

ACCENTRA 4607LN Grade 2 Entry Lever Lockset

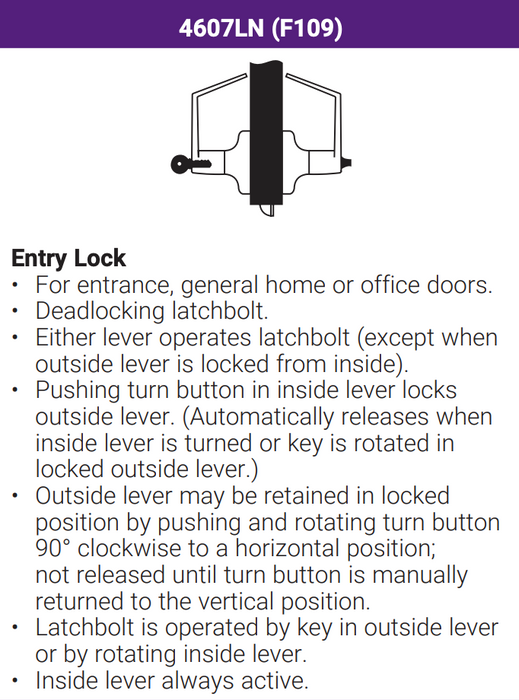

The ACCENTRA 4607LN Entry Lever Lockset provides flexible keyed access for commercial entrance, office and general-purpose doors. The inside turn button locks the outside lever, while the inside lever remains active at all times for immediate egress.

For temporary locking, pressing the inside turn button locks the outside lever until the inside lever is turned or a key is used from the exterior. For continued security, the turn button can be pushed and rotated 90 degrees to retain the outside lever in the locked position. It remains locked until the turn button is manually returned to its vertical position.

Part of the dependable and economical 4600LN Series, this cylindrical lockset is ANSI/BHMA Grade 2 certified, ADA compliant and UL/cUL listed for use on fire doors for up to three hours. Five lever designs and six architectural finishes are available for commercial projects across Canada.

Key Features :
• Entry function for commercial entrance and office doors
• Inside turn button locks the outside lever
• Temporary locking automatically releases when the inside lever is turned or the exterior key is used
• Turn button can retain the outside lever in the locked position
• Retained locking is manually released from the inside
• Key operates the latchbolt from the exterior
• Inside lever remains active for immediate egress
• Deadlocking latchbolt helps resist manipulation
• ANSI/BHMA Grade 2 certified
• UL/cUL listed for use on fire doors for up to three hours
• ADA-compliant lever design
• Non-handed and field reversible
• Adjustable for doors from 1-3/8" to 1-3/4" thick

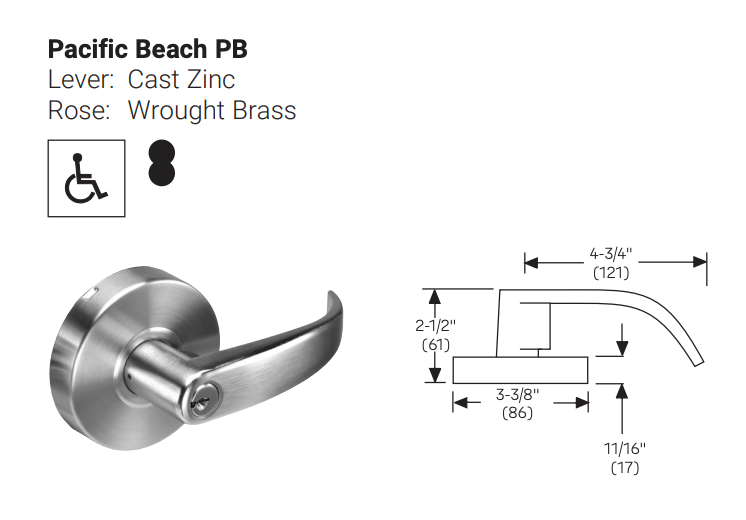

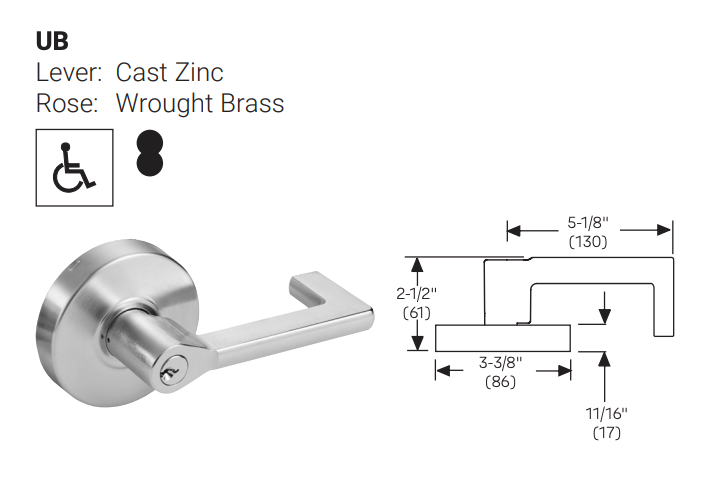

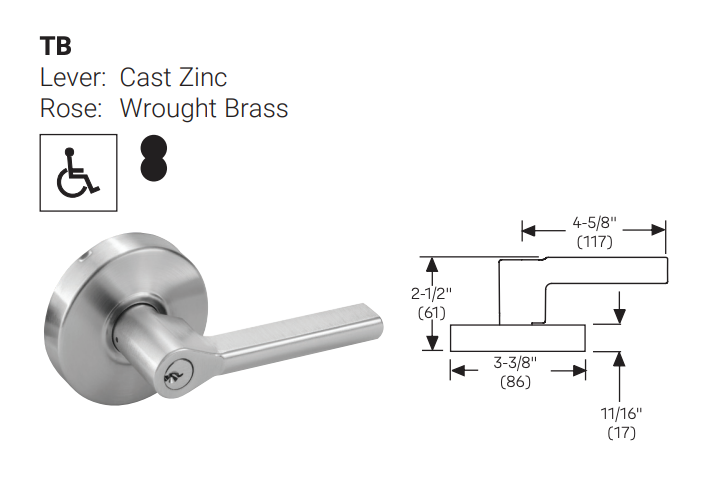

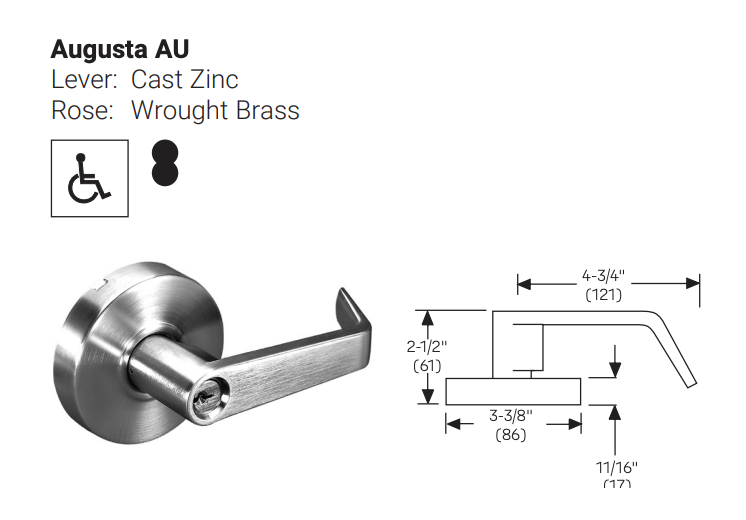

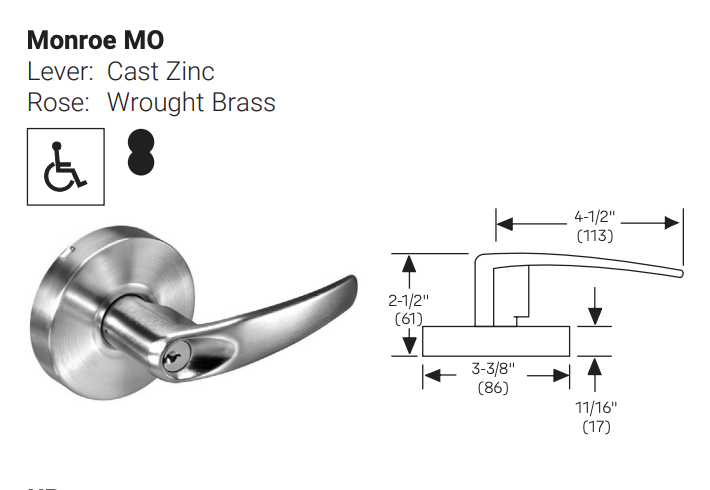

• Available in five lever designs and six architectural finishes

Product Specifications :
Series: 4600LN
Model: 4607LN
Function: Entry Lock
ANSI Function: F109
Lock Type: Cylindrical lever lockset
Exterior Operation: Outside lever operates unless locked by the inside turn button; key retracts the latchbolt when locked
Interior Operation: Inside lever remains active at all times
Locking Control: Push-and-turn interior button with temporary and retained locking modes
Door Preparation: ANSI/SDI A250.14
Door Thickness: Adjustable from 1-3/8" to 1-3/4" (35 to 44 mm)
Standard Backset: 2-3/4" (70 mm)
Standard Latchbolt: MCD234 deadlocking latchbolt with 2-3/4" backset, 2-1/4" × 1-1/8" square front and 1/2" throw
Standard Strike: 497 ANSI strike
Standard Cylinder: 1806 conventional 6-pin key-in-lever cylinder
Standard Keying: Keyed random in ACCENTRA PARA keyway
Keys Included: Two nickel silver keys
Handing: Non-handed and field reversible
Certification: ANSI/BHMA A156.2, Series 4000, Grade 2
Fire Rating: UL/cUL listed for use on fire doors for up to three hours
Accessibility: ADA compliant
Windstorm: Certified, subject to applicable local codes
Warranty: 3 years
