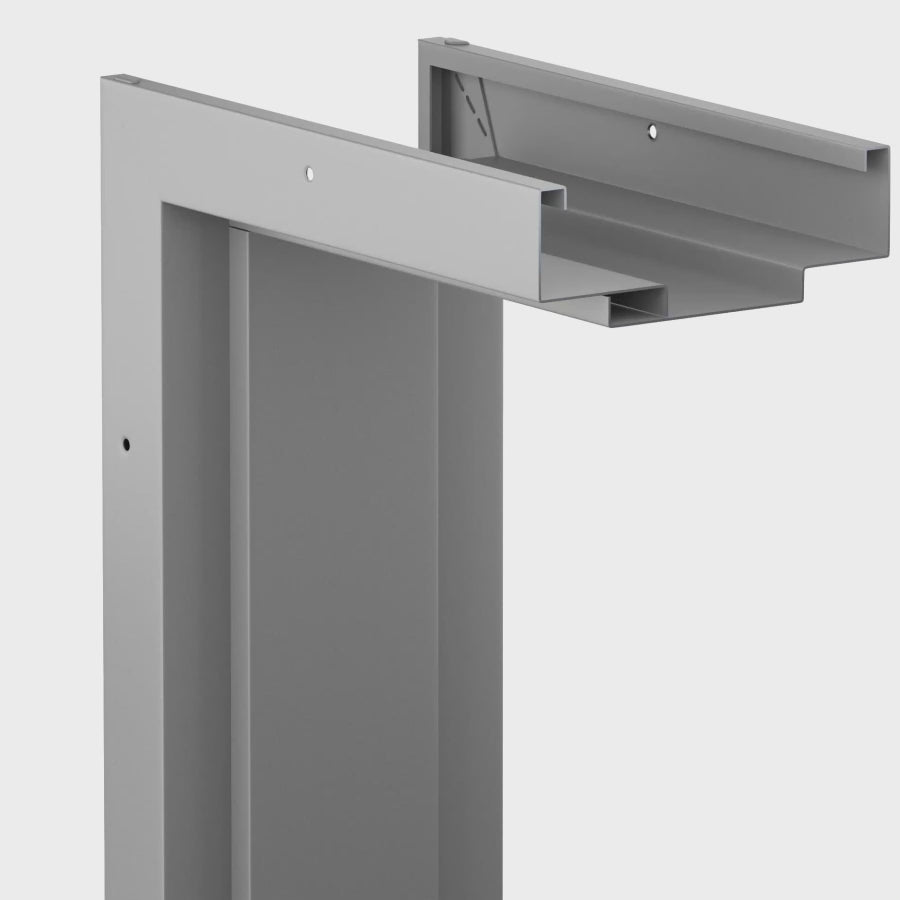

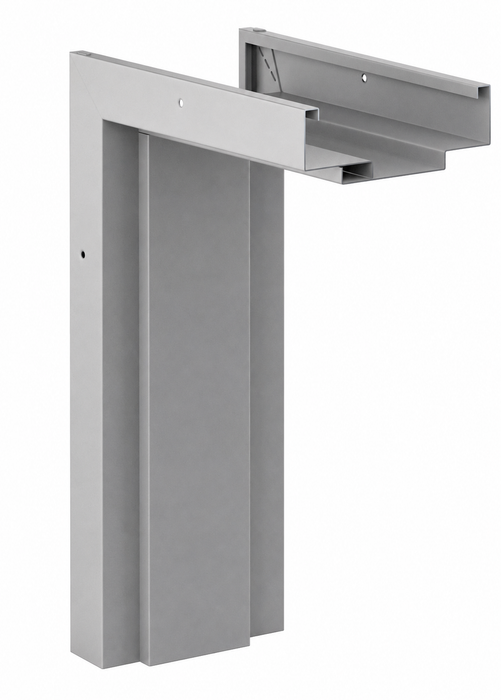

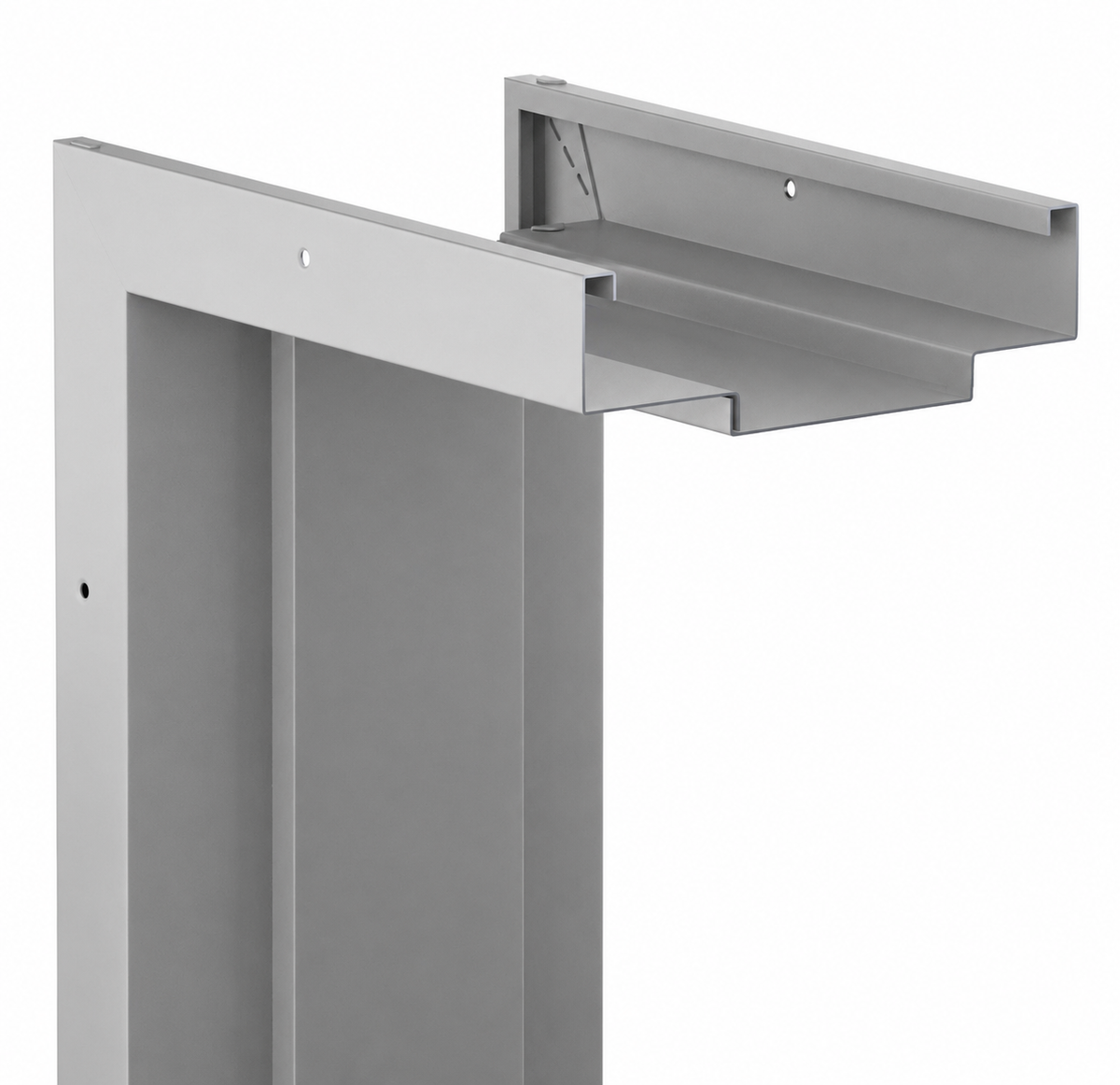

EF Adjustable Throat Steel Door Frame for Commercial Doors
The EF Adjustable Throat Steel Door Frame is engineered for commercial applications where wall thickness varies or design flexibility is required. Its adjustable throat design allows for easier installation while maintaining the strength and durability expected from a commercial steel frame.
Manufactured from premium 16-gauge A60 galvanneal steel, the EF frame features reinforced hinge preparation, a water-based primer finish, and compatibility with both wood and hollow metal doors. It is suitable for schools, healthcare facilities, offices, retail buildings, industrial projects, and other commercial applications across Canada.
Key Features :
Adjustable throat design
Fits varying wall thicknesses
16 Gauge A60 galvanneal steel
7 Gauge hinge reinforcement
Fire-rated construction
Supports electrified hardware
Water-based primer finish
Commercial grade durability
| Specification | Details |
|---|---|
| Model | EF |
| Product Type | Adjustable Throat Steel Door Frame |
| Material | A60 Galvanneal Steel |
| Steel Thickness | 16 Gauge |
| Hinge Reinforcement | 7 Gauge |
| Frame Profile | Unequal Double Rabbet |
| Construction | Adjustable Throat |
| Adjustable Range | 3-1/2" to 12" Wall Thickness |
| Finish | Water-Based Primer |
| Hardware Compatibility | Hollow Metal & Wood Doors |
| Fire Rated | Yes |
| Power Ready | Yes |
| Installation | Commercial Applications |
| Warranty | 1-Year Factory Warranty |
