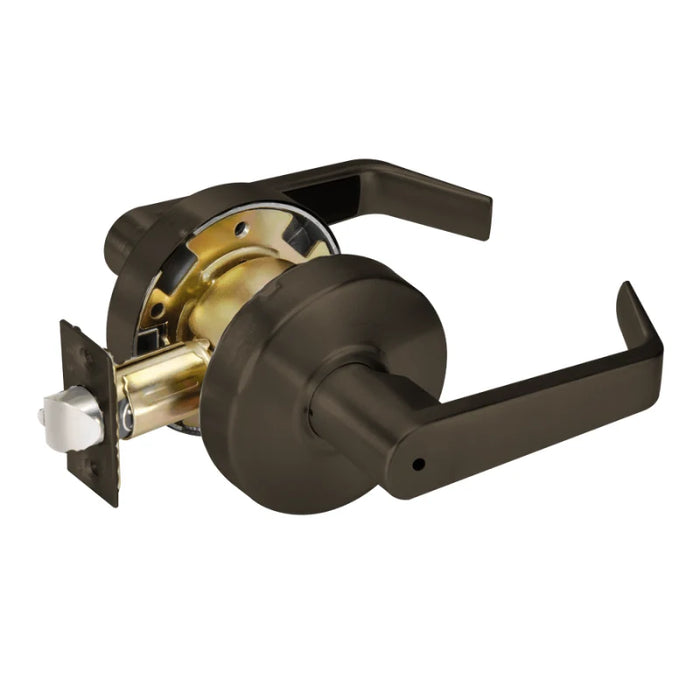

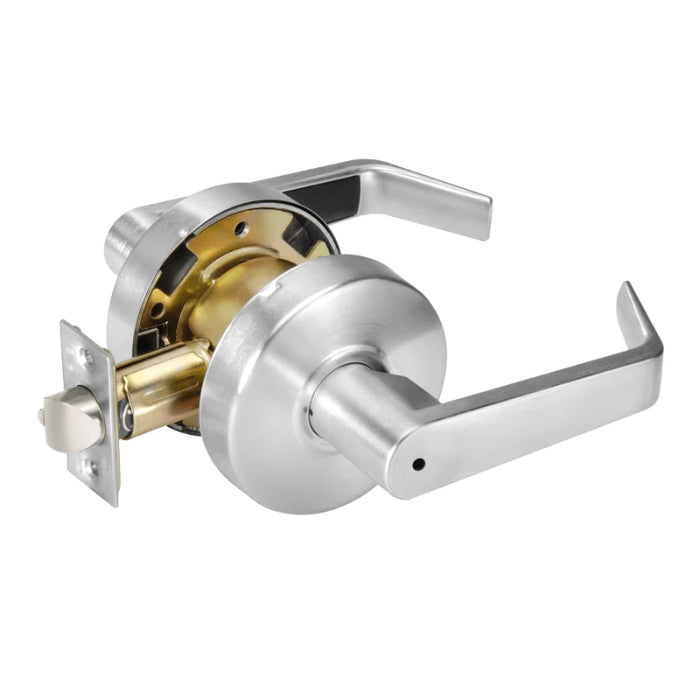

ACCENTRA 4602LN Grade 2 Privacy Lever Lockset

The ACCENTRA 4602LN Privacy Lever Lockset is designed for bathrooms, bedrooms, lavatories and other interior doors that require temporary privacy. A push button on the inside lever locks the outside lever, while the inside lever remains operational for immediate egress.

The lock automatically releases when the inside lever is turned or the door is closed. An emergency release is provided on the outside lever for authorized access when necessary. Part of the reliable and economical 4600LN Series, this commercial cylindrical lockset is ANSI/BHMA Grade 2 certified, ADA compliant and UL/cUL listed for use on fire doors for up to three hours.

Key Features :
• Privacy function for bathrooms, bedrooms and lavatories
• Interior push button locks the outside lever
• Lock automatically releases when the inside lever is turned or the door is closed
• Emergency release provided on the outside lever
• Inside lever remains operational at all times
• ANSI/BHMA Grade 2 certified
• UL/cUL listed for use on fire doors for up to three hours
• ADA-compliant lever design
• Non-handed and field reversible
• Adjustable for doors from 1-3/8" to 1-3/4" thick
• Available in five lever designs and six architectural finishes

Product Specifications :
Series: 4600LN
Model: 4602LN

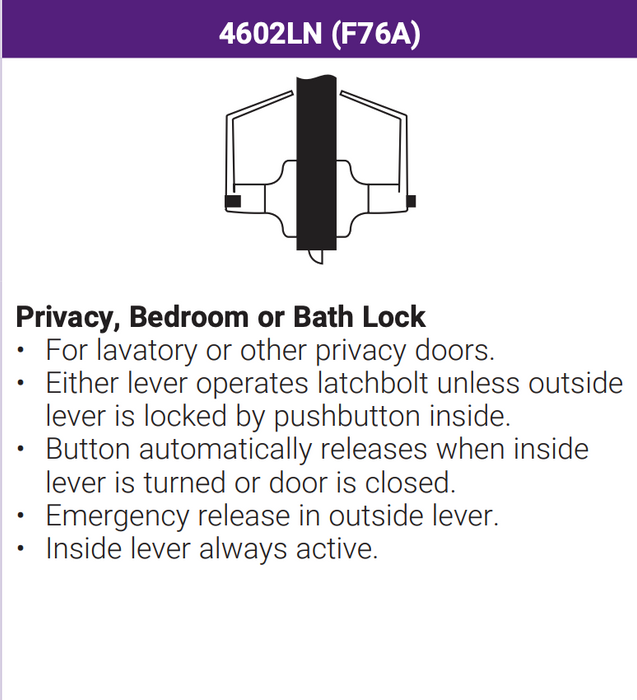

Function: Privacy, Bedroom or Bath Lock
ANSI Function: F76A
Lock Type: Cylindrical lever lockset
Door Preparation: ANSI/SDI A250.14
Door Thickness: Adjustable from 1-3/8" to 1-3/4" (35 to 44 mm)
Standard Backset: 2-3/4" (70 mm)
Standard Latchbolt: MCD234 deadlocking latchbolt with 2-3/4" backset, 2-1/4" × 1-1/8" square front and 1/2" throw
Standard Strike: 497 ANSI strike
Handing: Non-handed and field reversible
Certification: ANSI/BHMA A156.2, Series 4000, Grade 2
Fire Rating: UL/cUL listed for use on fire doors for up to three hours
Accessibility: ADA compliant
Windstorm: Certified, subject to applicable local codes
Warranty: 3 years
