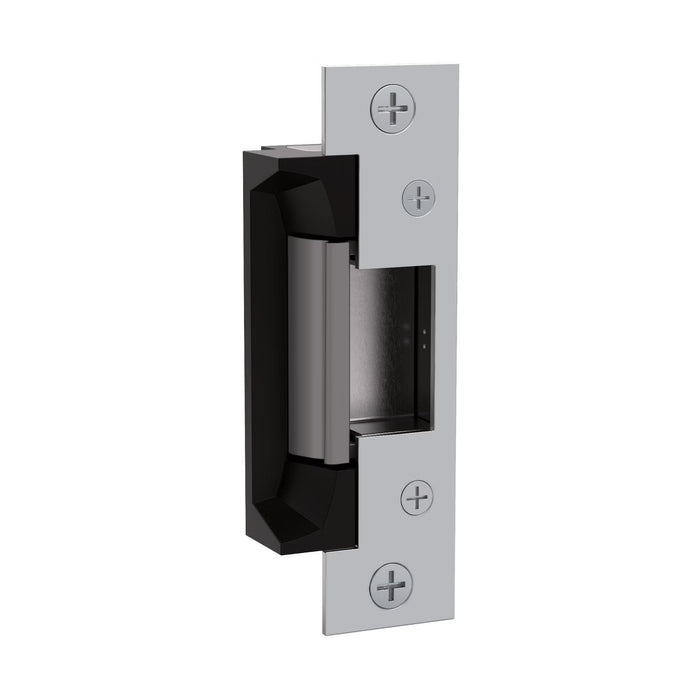

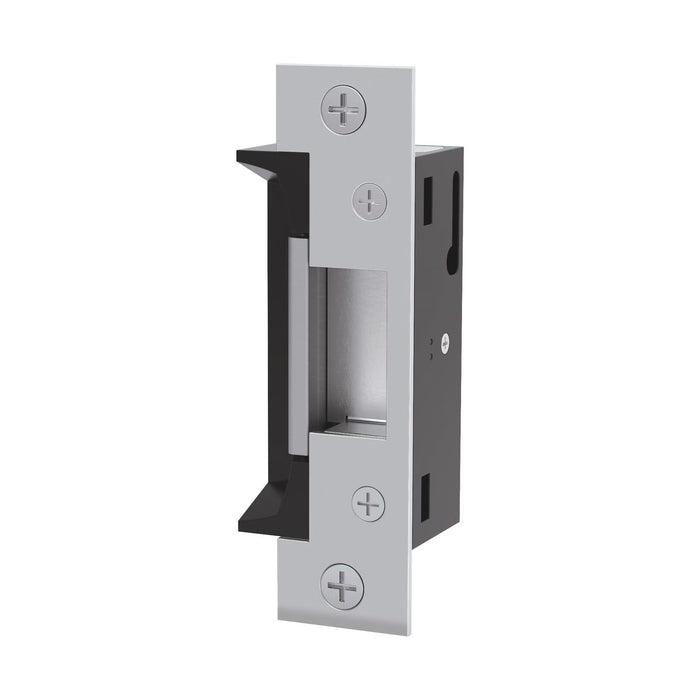

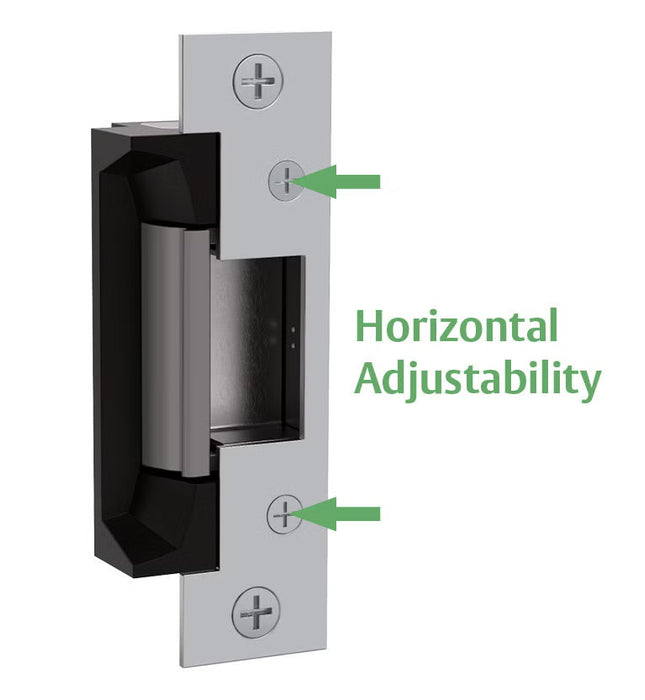

The HES 5200 Series Electric Strike is engineered for commercial and institutional applications requiring dependable access control and security. Its innovative horizontal adjustment feature enables installers to easily fine-tune the strike opening after installation, reducing installation time and ensuring proper latch alignment.
Built to ANSI/BHMA Grade 1 standards, the 5200 Series accommodates cylindrical locksets and offers field-selectable fail safe or fail secure functionality. With a dynamic strength rating of 70 ft-lbs, static strength of 1,500 lbs, and one million cycle endurance testing, this electric strike delivers long-lasting performance in demanding environments.
Key Features : Grade 1 electric strike Horizontal adjustability for precise alignment Field-selectable fail safe / fail secure operation Accommodates latchbolts up to 3/4" throw Non-handed design Dynamic strength: 70 ft-lbs Static strength: 1,500 lbs Endurance tested to 1,000,000 cycles Tamper-resistant construction Plug-in connector included Cylindrical lockset compatible Suitable for outdoor use Available with latchbolt monitoring options
Certifications : ANSI/BHMA A156.31 Grade 1 UL 294 Listed UL 1034 Burglary Resistant Listed CAN/ULC-60839-11-1 Listed RoHS Compliant Suitable for Outdoor Use
Estimated Shipping: 1-2 weeks
Specifications

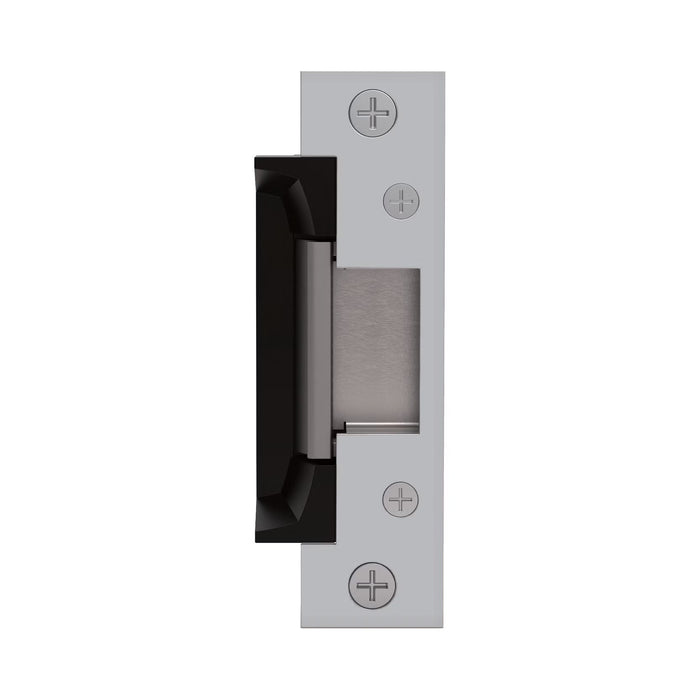

The HES 5200 Series Electric Strike features an in-frame horizontal adjustable design that simplifies installation and allows precise alignment after installation. Designed for cylindrical locksets, this Grade 1 electric strike offers field-selectable fail safe/fail secure operation, exceptional durability, and compatibility with latchbolts up to 3/4" throw.
