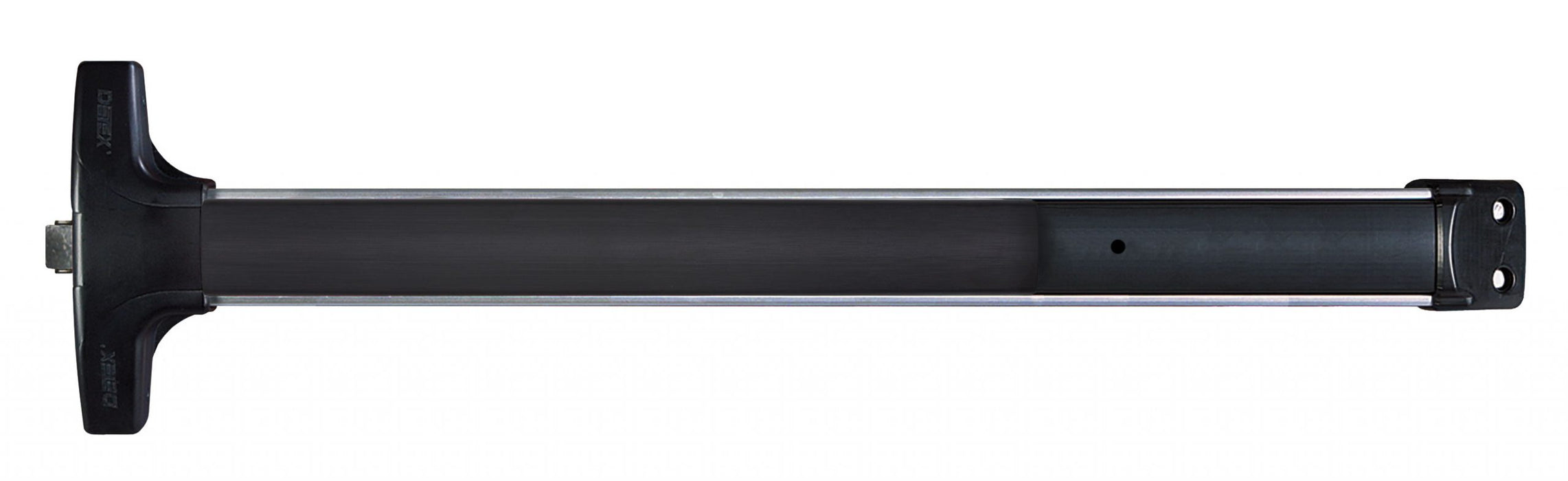

Detex V40-EB Grade 1 Rim Exit Device with Exit Alarm

The Detex Value Series V40-EB is a Grade 1 rim exit device with an integrated battery-powered exit alarm for commercial and institutional doors. The alarm helps identify unauthorized door use and operates using a replaceable 9-volt battery.

Designed for single doors and pairs of doors with mullions, the V40-EB features a stainless steel 3/4-inch deadlocking Pullman-style latchbolt and a heavy-duty ribbed aluminum rail. Its non-handed, field-sizeable construction and patented mounting system help make installation accurate and efficient.

Finished in 628 clear anodized aluminum, this exit device offers dependable performance for offices, retail spaces, schools, warehouses and other high-traffic commercial environments.

Product Specifications :
Series: Value Series
Model: V40-EB
Device type: Surface-mounted rim exit device
Electrical function: Battery-powered exit alarm
Power supply: Replaceable 9-volt battery
Finish: 628 clear anodized aluminum
Grade: ANSI/BHMA Grade 1
Classification: ANSI/BHMA A156.3, Type 1
Latchbolt: Stainless steel, 3/4-inch deadlocking Pullman-style
Construction: Heavy-duty ribbed aluminum rail
Handing: Non-handed
Sizing: Field sizeable
Door types: Wood, hollow metal, fibreglass or aluminum
Door thickness: 1-3/4 to 2-1/4 inches
Application: Single doors or pairs of doors with mullions
Standard strike: 99 surface strike
Fasteners: Machine and self-drilling screws
Security performance: Withstands more than 1,400 lb of static pull force
Warranty: 10-year mechanical and 3-year electrical limited manufacturer’s warranty
