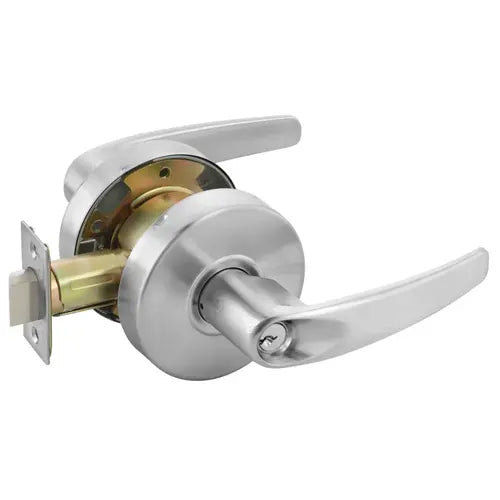

The ACCENTRA 4608LN Classroom Lever Lockset provides controlled access for classrooms, utility rooms and other commercial or institutional openings. The outside lever can be locked or unlocked using a key, while the inside lever remains active at all times for immediate egress.

Unlike an entry lockset, the 4608LN has no interior push button. This helps prevent occupants from changing the exterior locking status from inside the room. Once unlocked by key, both levers operate the latchbolt until the exterior lever is locked again by key.

Part of the economical and dependable 4600LN Series, this commercial cylindrical lockset is ANSI/BHMA Grade 2 certified, ADA compliant and UL/cUL listed for use on fire doors for up to three hours. Five lever designs and six architectural finishes are available for commercial projects across Canada.

Key Features :
• Classroom function for educational, institutional and utility-room doors
• Exterior lever is locked or unlocked using a key
• No interior push button
• Both levers operate when the exterior lever is unlocked
• Inside lever remains active at all times for immediate egress
• Deadlocking latchbolt helps resist manipulation
• ANSI/BHMA Grade 2 certified
• UL/cUL listed for use on fire doors for up to three hours
• ADA-compliant lever design
• Field-reversible handing
• Adjustable for doors from 1-3/8" to 1-3/4" thick
• Available in five lever designs and six architectural finishes

Product Specifications :
Series: 4600LN
Model: 4608LN

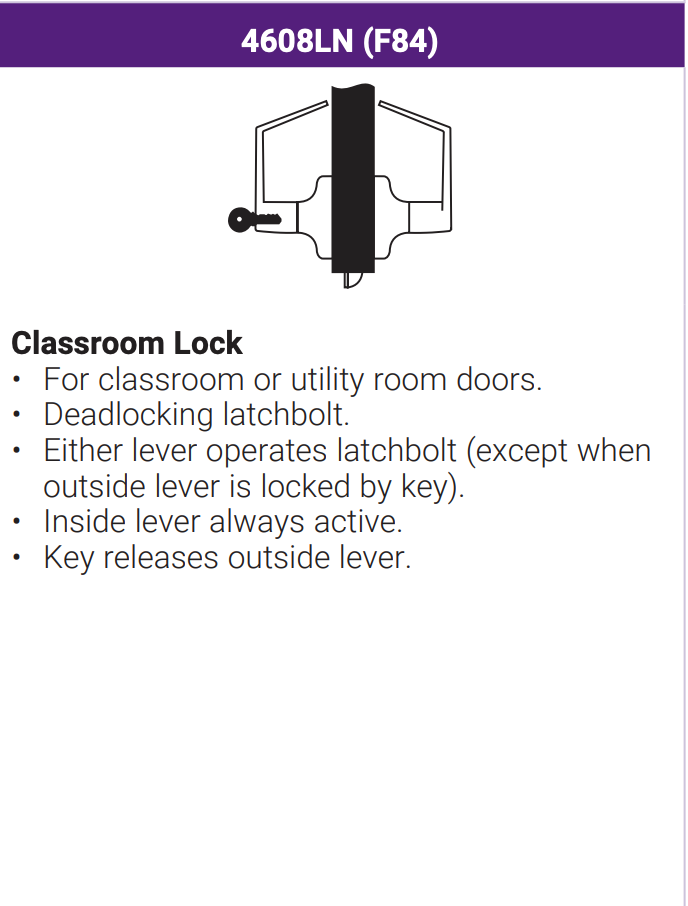

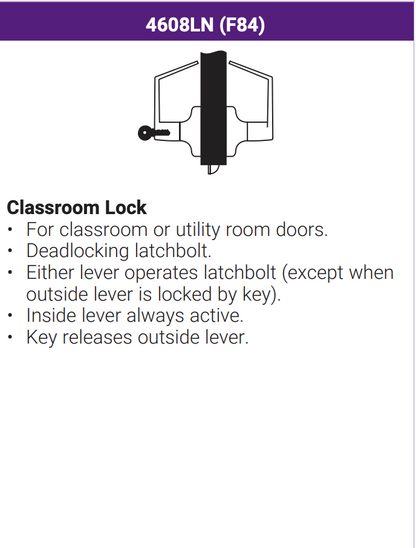

Function: Classroom Lock
ANSI Function: F84
Lock Type: Cylindrical lever lockset
Exterior Operation: Lever operates when unlocked and is locked or unlocked using a key
Interior Operation: Inside lever remains active at all times
Interior Locking Control: None
Door Preparation: ANSI/SDI A250.14
Door Thickness: Adjustable from 1-3/8" to 1-3/4" (35 to 44 mm)
Standard Backset: 2-3/4" (70 mm)
Standard Latchbolt: MCD234 deadlocking latchbolt with 2-3/4" backset, 2-1/4" × 1-1/8" square front and 1/2" throw
Standard Strike: 497 ANSI strike
Standard Cylinder: 1806 conventional 6-pin key-in-lever cylinder
Standard Keying: Keyed random in ACCENTRA PARA keyway
Keys Included: Two nickel silver keys
Handing: Field reversible
Certification: ANSI/BHMA A156.2, Series 4000, Grade 2
Fire Rating: UL/cUL listed for use on fire doors for up to three hours
Accessibility: ADA compliant
Windstorm: Certified, subject to applicable local codes
Warranty: 3 years
