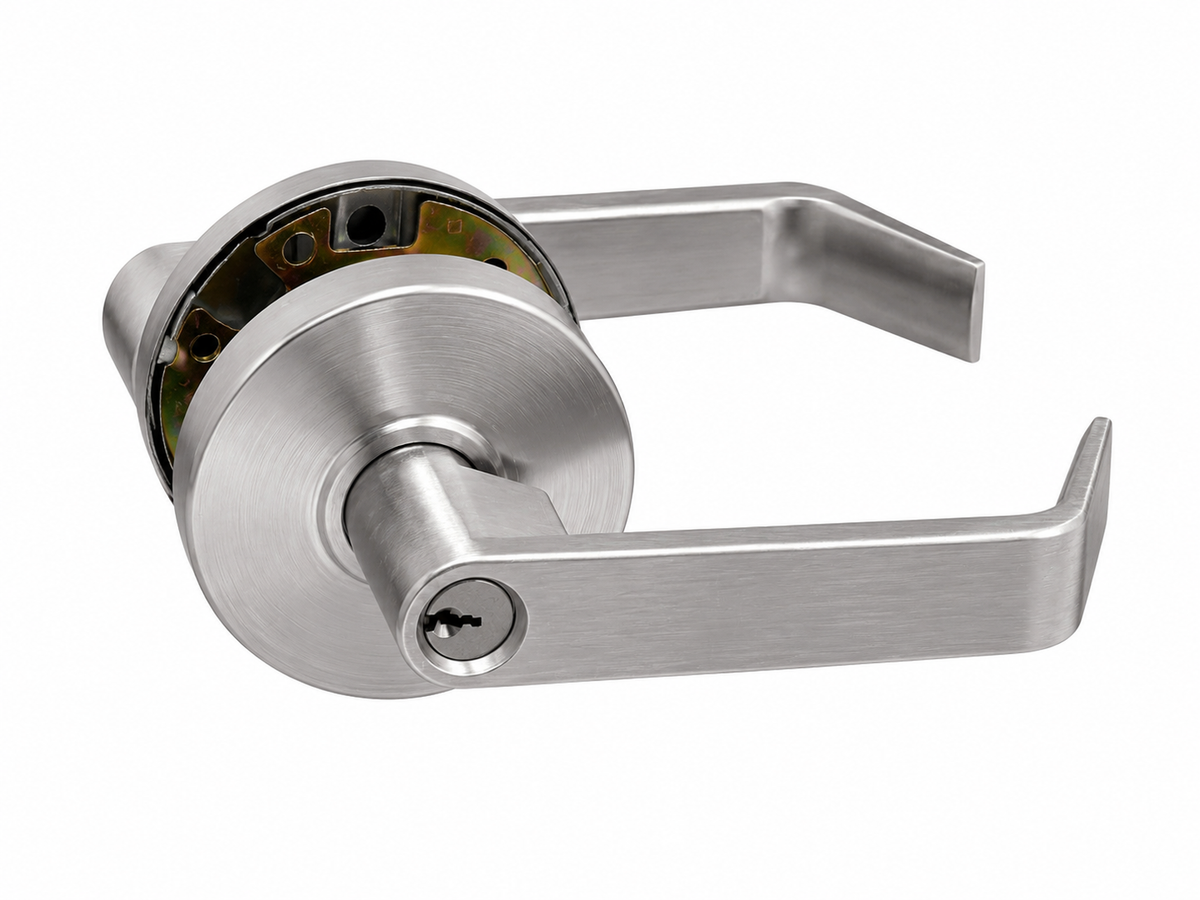

The ACCENTRA 4605LN Storeroom Lever Lockset provides controlled access for storerooms, utility rooms, service areas and other commercial openings that should remain secured from the outside.

The outside lever is always rigid, and the deadlocking latchbolt is retracted from the exterior using a key. The inside lever remains active at all times, allowing immediate egress without a key. Because the outside lever cannot be left unlocked, this function helps prevent restricted rooms from being accidentally left unsecured.

Part of the economical and dependable 4600LN Series, this commercial cylindrical lockset is ANSI/BHMA Grade 2 certified, ADA compliant and UL/cUL listed for use on fire doors for up to three hours.

Key Features :
• Storeroom function for controlled-access commercial openings
• Suitable for storerooms, utility rooms and service areas
• Outside lever remains rigid at all times
• Key retracts the latchbolt from the outside
• Inside lever remains active for immediate egress
• Deadlocking latchbolt improves resistance to manipulation
• ANSI/BHMA Grade 2 certified
• UL/cUL listed for use on fire doors for up to three hours
• ADA-compliant lever design
• Non-handed and field reversible
• Adjustable for doors from 1-3/8" to 1-3/4" thick
• Available in five lever designs and six architectural finishes

Product Specifications :
Series: 4600LN
Model: 4605LN

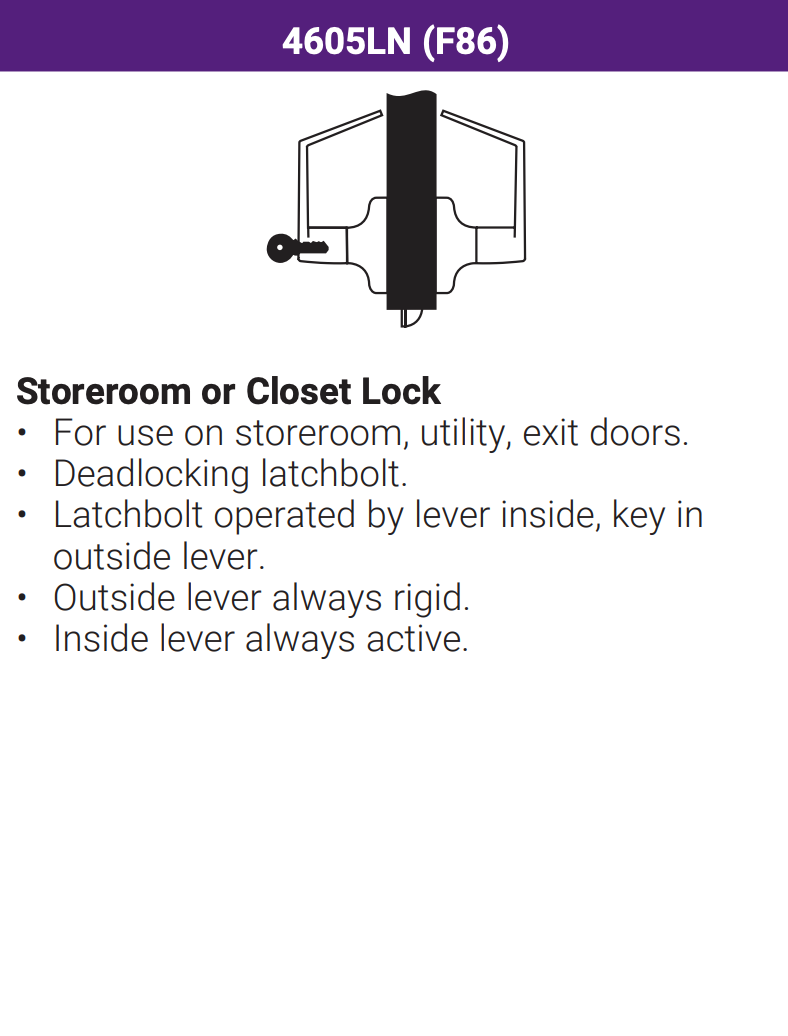

Function: Storeroom or Closet Lock
ANSI Function: F86
Lock Type: Cylindrical lever lockset
Operation: Outside lever always rigid; key retracts latchbolt from outside; inside lever always active
Door Preparation: ANSI/SDI A250.14
Door Thickness: Adjustable from 1-3/8" to 1-3/4" (35 to 44 mm)
Standard Backset: 2-3/4" (70 mm)

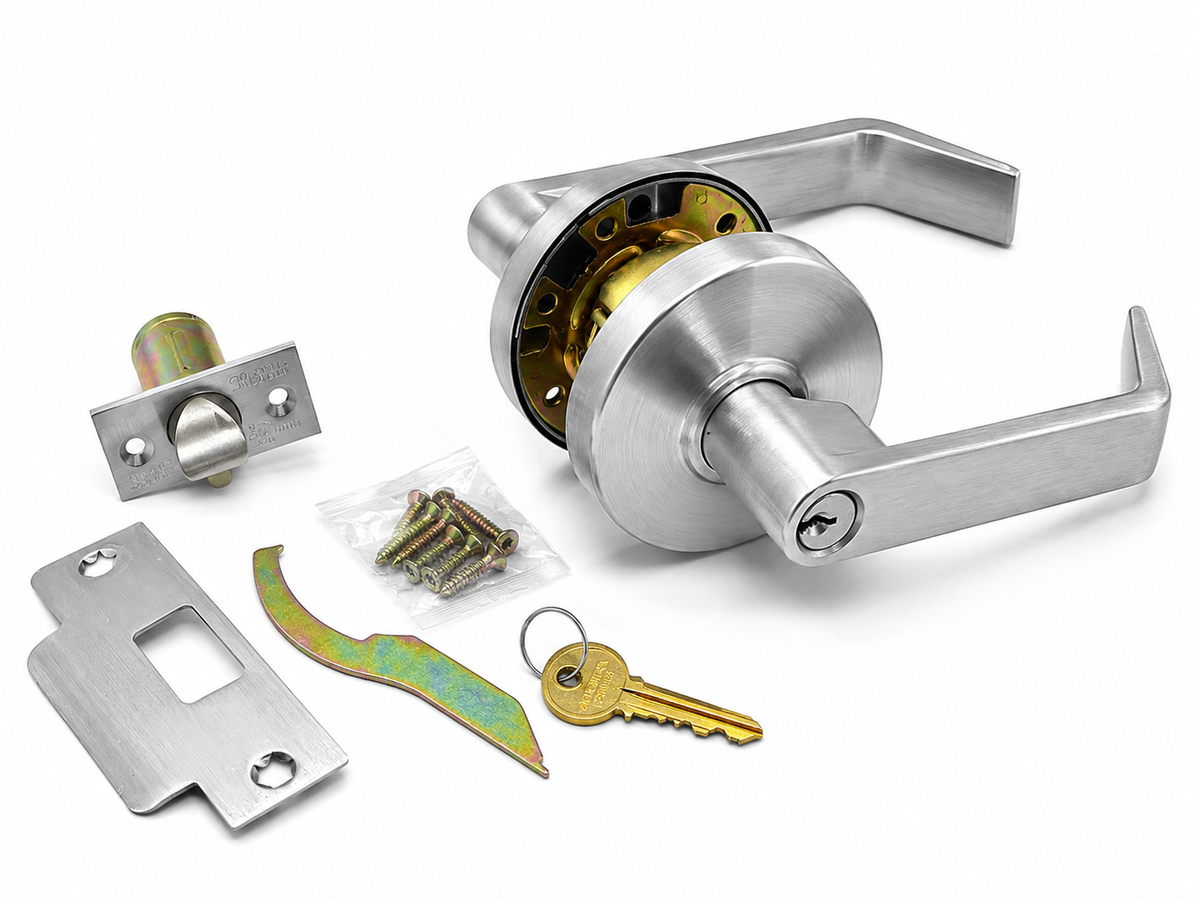

Standard Latchbolt: MCD234 deadlocking latchbolt with 2-3/4" backset, 2-1/4" × 1-1/8" square front and 1/2" throw
Standard Strike: 497 ANSI strike
Standard Cylinder: 1806 conventional 6-pin key-in-lever cylinder
Standard Keying: Keyed random in ACCENTRA PARA keyway
Keys Included: Two nickel silver keys
Handing: Non-handed and field reversible
Certification: ANSI/BHMA A156.2, Series 4000, Grade 2
Fire Rating: UL/cUL listed for use on fire doors for up to three hours
Accessibility: ADA compliant
Windstorm: Certified, subject to applicable local codes
Warranty: 3 years
